1883132 | Phoenix Contact

Socket header, 11 pole, pitch 5 mm, straight, green, 1883132

Order No.: 64P0498
EAN: 4017918161095
MPN:
1883132
ZEC 1,5/11-ST-5,0 C2 R1,11
Series: ZEC

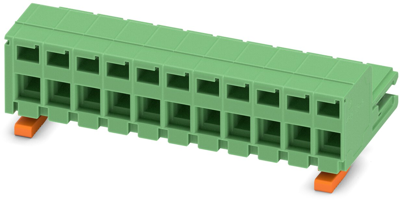

1883132 Phoenix Contact PCB Connection Systems Image 1

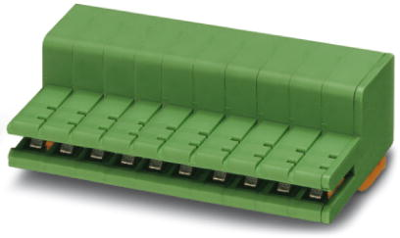

1883132 Phoenix Contact PCB Connection Systems Image 2

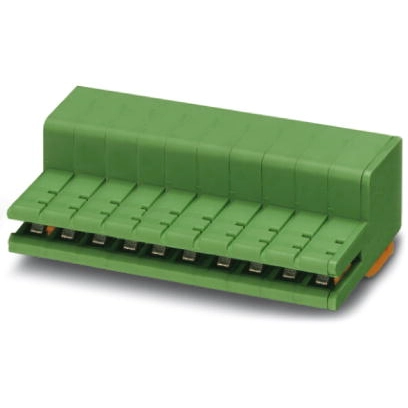

1883132 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.4859 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
5.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.4859 €
Technical specifications
Filter Property Value
Version socket header
Colour green
Type of locking Yes
Pin number 11 pole
Additional parts equipped
Connection tension clamp connection
Connection plating tin-plated
Rated voltage 320 V
Contact type socket
Rated current 10 A
contact surface tin-plated
Orientation straight
Grid 5 mm
Number of rows 1
Logistics
Property Value
Country of origin GR
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
