1873689 | Phoenix Contact

Socket header, 5 pole, pitch 5.08 mm, straight, green, 1873689

Order No.: 62P8487
EAN: 4017918143077
MPN:
1873689
FKCVW 2,5/ 5-ST-5,08
Series: FKCVW

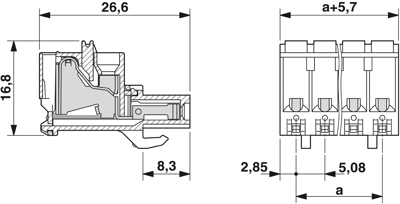

1873689 Phoenix Contact PCB Connection Systems Image 1

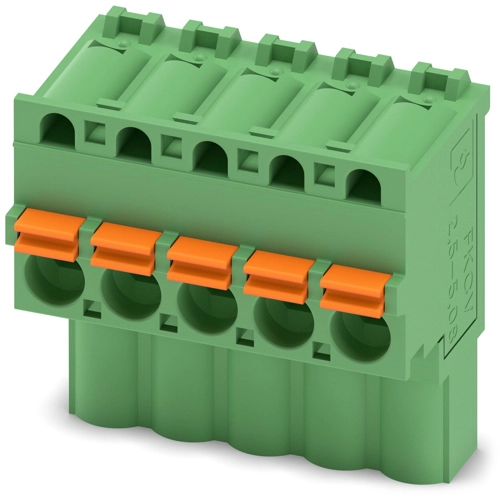

1873689 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.879 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.879 €

Printed-circuit board connector, 1873689, Phoenix Contact

PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 5, Number of rows: 1, Number of positions per row: 5, number of connections: 5, product range: FKCVW 2,5/..-ST, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: -90 °, Locking clip: - Locking clip, plug-in system: CLASSIC COMBICON, Locking: without, type of packaging: packed in cardboard

Features

  • Time saving push-in connection, tools not required
  • Intuitive use through colour coded actuation lever
  • Quick and convenient testing using integrated test option
  • Can be combined with the MSTB 2,5 range
Technical specifications
Filter Property Value
Contact type socket
Orientation straight
Rated voltage 320 V
Additional parts equipped
Version socket header
Rated current 12 A
Grid 5.08 mm
Type of locking No
Colour green
Connection push-in spring connection
contact surface tin-plated
Number of rows 1
Pin number 5 pole
Connection plating tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
