1864163 | Phoenix Contact
Direct connector, 15 pole, pitch 5 mm, straight, green, 1864163
Unit Price (€ / pc.)
9.0678 € *
Available: 0 pcs.
Leadtime: On Request **
Connecting Block, 1864163, Phoenix Contact
PCB direct plug, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 15, pitch: 5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin, mounting: SKEDD - Direct plug-in technology, pin layout: Zigzag pinning W, solder pin [P]: 4.7 mm
FEATURES

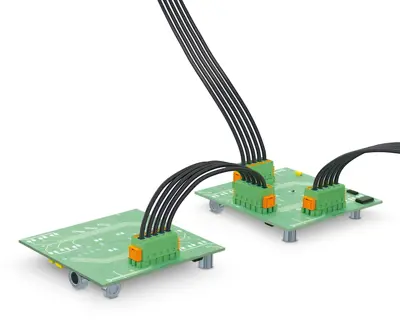

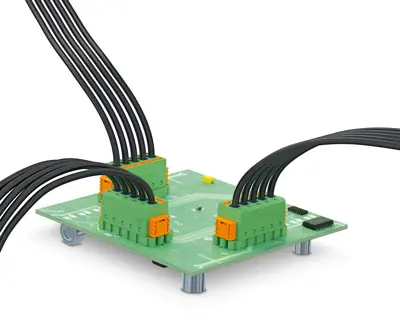

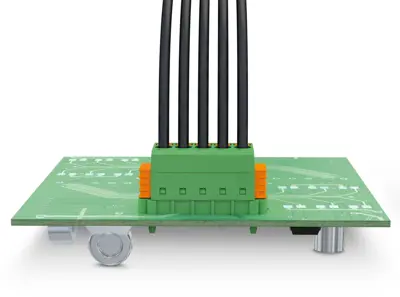

- SKEDD direct plug-in technology enables flexible positioning on the PCB
- Reduced component and process costs: simple insertion by hand and vibration-resistant connection
- Wide range of applications, thanks to suitability for PCBs with chemically tin-plated or Hot Air Leveling (HAL) surface
- Time saving push-in connection, tools not required
Technical Data
- Rated current: 12 A
- Design: Straight
- Pole number: 8-pole
- Contact spacing: 5 mm
Technical specifications
| Grid | 5 mm | |
| Connection | push-in spring connection | |
| Rated voltage | 320 V | |
| Contact type | pin | |
| Pin number | 15 pole | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Orientation | straight | |
| Colour | green | |
| Version | direct connector | |
| Connection plating | tin-plated | |
| Rated current | 12 A | |
| contact surface | tin-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
