1864066 | Phoenix Contact

Direct connector, 5 pole, pitch 5 mm, straight, green, 1864066

Order No.: 63P8686
EAN: 4055626210360
MPN:
1864066
SDC 2,5/ 5-PV-5,0-ZB
Series: SDC

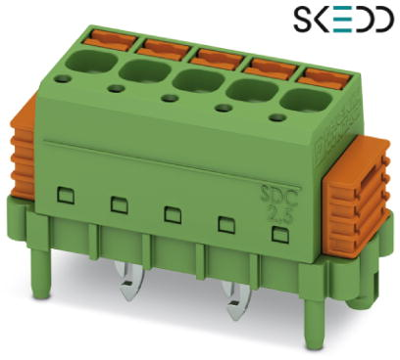

1864066 Phoenix Contact PCB Connection Systems Image 1

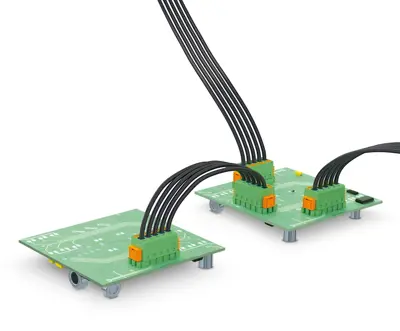

1864066 Phoenix Contact PCB Connection Systems Image 2

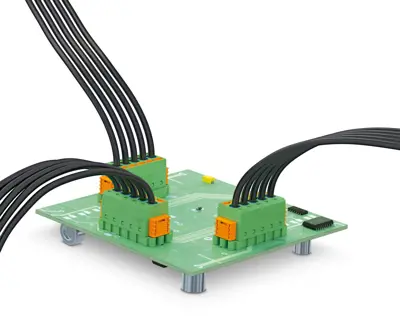

1864066 Phoenix Contact PCB Connection Systems Image 3

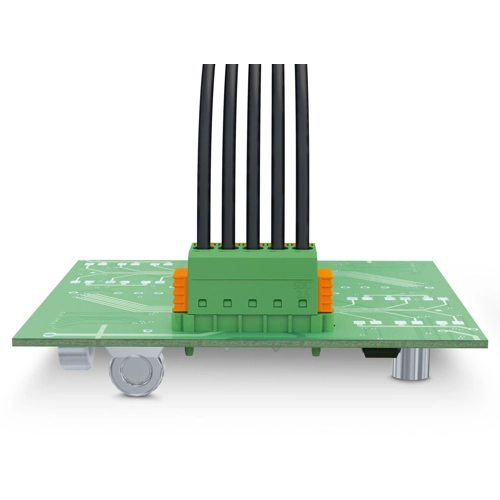

1864066 Phoenix Contact PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
5.1170 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1170 €
10 pcs.
4.7005 €
50 pcs.
4.2840 €
100 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale

Direct connector, 1864066, Phoenix Contact

PCB direct plug, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: SDC 2,5/.-PV, pitch: 5 mm, connection method: Push-in spring connection, mounting: SKEDD - Direct plug-in technology, conductor/PCB connection direction: 90 °, pin layout: Zigzag pinning W, solder pin [P]: 5 mm, plug-in system: SKEDD, locking: Snap-in locking, mounting method: Latching flange, type of packaging: packed in cardboard.

Features

  • SKEDD direct plug-in technology enables flexible positioning on the PCB
  • Reduced component and process costs: simple insertion by hand and vibration-resistant connection
  • Contacts arranged in a double row enable high packing density in a compact area
  • Wide range of applications, thanks to suitability for PCBs with chemically tin-plated or Hot Air Leveling (HAL) surface
  • Time saving push-in connection, tools not required
  • Intuitive operation due to color-coded actuating push button
  • Quick and convenient testing using integrated test option
Technical specifications
Filter Property Value
Number of rows 1
Grid 5 mm
contact surface tin-plated
Connection push-in spring connection
Version direct connector
Connection plating tin-plated
Contact type pin
Rated voltage 320 V
Type of locking Yes
Orientation straight
Rated current 12 A
Colour green
Pin number 5 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
