1864040 | Phoenix Contact

Direct connector, 3 pole, pitch 5 mm, straight, green, 1864040

Order No.: 63P8684
EAN: 4055626210346
MPN:
1864040
SDC 2,5/ 3-PV-5,0-ZB
Series: SDC

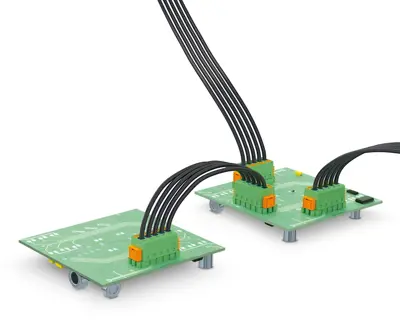

1864040 Phoenix Contact PCB Connection Systems Image 1

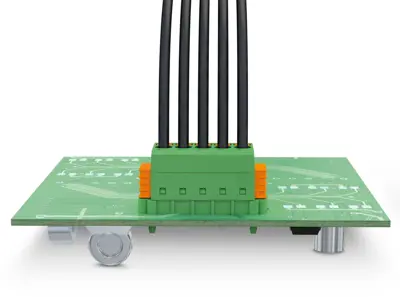

1864040 Phoenix Contact PCB Connection Systems Image 2

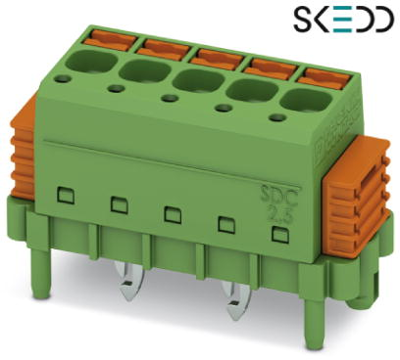

1864040 Phoenix Contact PCB Connection Systems Image 3
1864040 Phoenix Contact PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
3.2725 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
3.0107 €
50 pcs.
2.7370 €
100 pcs.
2.4633 €
*incl. VAT plus shipping costs
Subject to prior sale

Direct connector, 1864040, Phoenix Contact

PCB direct plug, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: SDC 2,5/.-PV, pitch: 5 mm, connection method: Push-in spring connection, mounting: SKEDD - Direct plug-in technology, conductor/PCB connection direction: 90 °, pin layout: Zigzag pinning W, solder pin [P]: 5 mm, plug-in system: SKEDD, locking: Snap-in locking, mounting method: Latching flange, type of packaging: packed in cardboard.

Features

  • SKEDD direct plug-in technology enables flexible positioning on the PCB
  • Reduced component and process costs: simple insertion by hand and vibration-resistant connection
  • Contacts arranged in a double row enable high packing density in a compact area
  • Wide range of applications, thanks to suitability for PCBs with chemically tin-plated or Hot Air Leveling (HAL) surface
  • Time saving push-in connection, tools not required
  • Intuitive operation due to color-coded actuating push button
  • Quick and convenient testing using integrated test option
Technical specifications
Number of rows 1
Grid 5 mm
Orientation straight
Pin number 3 pole
Connection push-in spring connection
Type of locking Yes
Colour green
Rated current 12 A
Contact type pin
Version direct connector
Connection plating tin-plated
contact surface tin-plated
Rated voltage 320 V
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
