1860727 | Phoenix Contact
Socket header, 20 pole, pitch 5.08 mm, straight, green, 1860727
Unit Price (€ / pc.)
11.5549 € *
Standard delivery time from the manufacturer is: 9 Weeks
Printed-circuit board connector, 1860727, Phoenix Contact
PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 20, Number of rows: 1, Number of positions per row: 20, number of connections: 20, product range: FKCOW 2,5/..-ST, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: -90 °, Locking clip: - Locking clip, plug-in system: CLASSIC COMBICON, Locking: without, type of packaging: packed in cardboard
Features

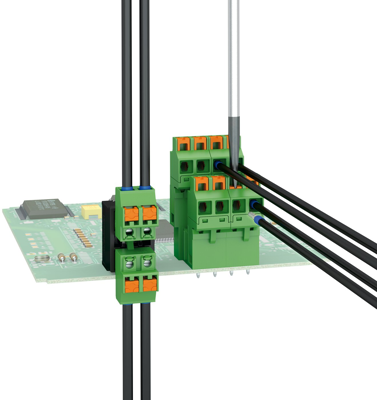

- The conductor connection orthogonal to the direction of operation simplifies the cabling of DIN-rail-mountable devices
- Time saving push-in connection, tools not required
- Intuitive use through colour coded actuation lever
- Quick and convenient testing using integrated test option
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 20 pole | |
| Colour | green | |
| Connection plating | tin-plated | |
| Contact type | socket | |
| Rated current | 12 A | |
| Version | socket header | |
| Connection | push-in spring connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
