1857964 | Phoenix Contact

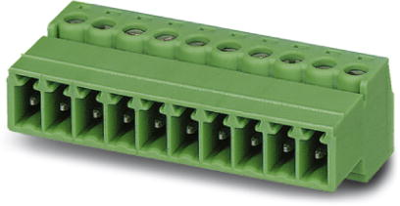

Pin header, 10 pole, pitch 3.81 mm, straight, green, 1857964
Unit Price (€ / pc.)
11.5311 € *
Available: 24 pcs.
Available in 5 Days: 1,060 pcs. - if ordered today
Total Price:
11.53 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5311 €
10 pcs.
10.6029 €
50 pcs.
9.6509 €
100 pcs.
8.6870 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connector, 1857964, PHOENIX
PCB plug, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 10, grid spacing: 3.81 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | screw connection | |
| Rated voltage | 160 V | |
| Orientation | straight | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 10 pole | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
