1852260 | Phoenix Contact

Socket header, 11 pole, pitch 3.81 mm, straight, green, 1852260

Order No.: 63P2700
EAN: 4017918143824
MPN:
1852260
MCC 1/11-STZ-3,81
Series: MCC

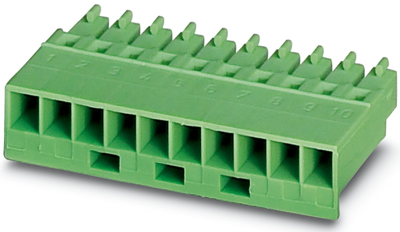

1852260 Phoenix Contact PCB Connection Systems Image 1

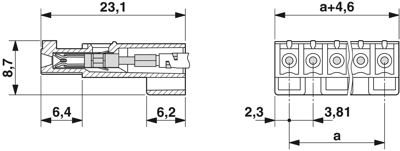

1852260 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.0345 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.03 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0345 €
10 pcs.
2.7846 €
50 pcs.
2.5347 €
100 pcs.
2.2729 €
*incl. VAT plus shipping costs
Subject to prior sale

Printed-circuit board connector, 1852260, Phoenix Contact

PCB connector, nominal cross section: 1 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, type of contact: Female connector, Number of potentials: 11, Number of rows: 1, Number of positions per row: 11, number of connections: 11, product range: MCC 1/..-STZ, pitch: 3.81 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, plug-in system: MINI COMBICON, Locking: without, type of packaging: packed in cardboard, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 5A/MCC-MT 0,2-0,35 (1859988); 8A/MCC-MT 0,5-1,0 (1859991)

Features

  • Inexpensive connection of large quantities of pre-assembled conductors
  • Pull-out aid facilitates handling and allows the tensile force to be reduced at the contact point
Technical specifications
Filter Property Value
Type of locking No
Version socket header
Connection crimp connection
Number of rows 1
Contact type socket
Additional parts unequipped
Rated voltage 320 V
Connection plating tin-plated
contact surface tin-plated
Pin number 11 pole
Grid 3.81 mm
Colour green
Rated current 8 A
Orientation straight
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
