1850958 | Phoenix Contact

Socket header, 12 pole, pitch 3.81 mm, straight, green, 1850958

Order No.: 63P0012
EAN: 4017918110055
MPN:
1850958
FRONT-MC 1,5/12-STF-3,81
Series: FRONT-MC

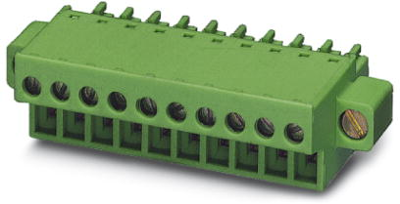

1850958 Phoenix Contact PCB Connection Systems Image 1

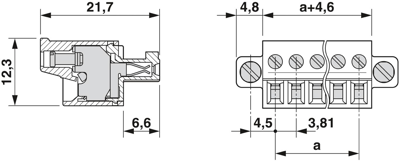

1850958 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
12.0904 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
604.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
12.0904 €

PCB Connector, 1850958, PHOENIX

PCB plug, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 12, grid spacing: 3.81 mm, connection type: front screw terminal, color: green, contact surface: tin.

Technical specifications
Filter Property Value
Type of locking Yes
Grid 3.81 mm
Additional parts equipped
Connection screw connection
Version socket header
Connection plating tin-plated
contact surface tin-plated
Orientation straight
Rated current 8 A
Number of rows 1
Contact type socket
Colour green
Pin number 12 pole
Rated voltage 160 V
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
