1848710 | Phoenix Contact

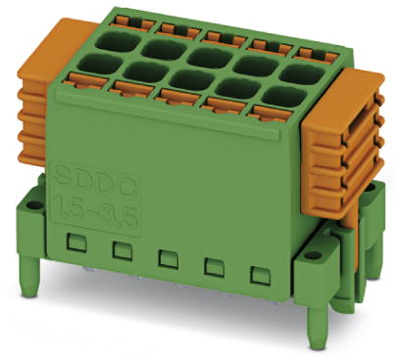

Direct connector, 9 pole, pitch 3.5 mm, straight, green, 1848710
Unit Price (€ / pc.)
11.3645 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Connecting Block, 1848710, Phoenix Contact
PCB direct plug, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 9, pitch: 3.5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin, mounting: SKEDD - Direct plug-in technology, pin layout: Linear double pinning
FEATURES

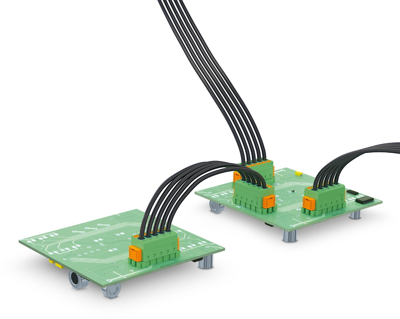

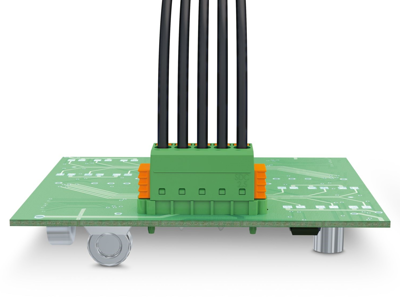

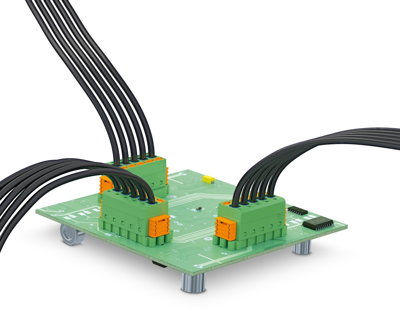

- SKEDD direct plug-in technology enables flexible positioning on the PCB
- Reduced component and process costs: simple insertion by hand and vibration-resistant connection
- Wide range of applications, thanks to suitability for PCBs with chemically tin-plated or Hot Air Leveling (HAL) surface
- Time saving push-in connection, tools not required
Technical Data
- Rated current: 8 A
- Design: Straight
- Pole number: 9-pole
- Contact spacing: 3.5 mm
Technical specifications
| Number of rows | 2 | |
| Rated voltage | 160 V | |
| Contact type | socket | |
| Type of locking | Yes | |
| Connection | push-in spring connection | |
| contact surface | tin-plated | |
| Pin number | 9 pole | |
| Grid | 3.5 mm | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Colour | green | |
| Version | direct connector | |
| Rated current | 8 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
