1848452 | Phoenix Contact

Socket header, 20 pole, pitch 3.81 mm, straight, green, 1848452

Order No.: 63P2670
EAN: 4017918114244
MPN:
1848452
MC 1,5/20-STF-3,81
Series: COMBICON MC 1,5

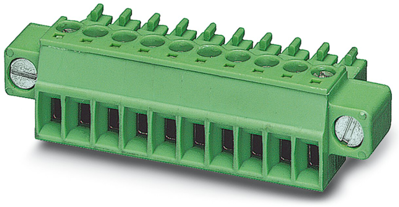

1848452 Phoenix Contact PCB Connection Systems Image 1
1848452 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
12.2332 € *
Available in 10 days: 94 pcs. - if ordered today
Total Price:
611.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
12.2332 €

PCB Connector, 1848452, PHOENIX

PCB plug, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 20, grid dimension: 3.81 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Filter Property Value
Contact type socket
Pin number 20 pole
Grid 3.81 mm
Colour green
Version socket header
Connection screw connection
Connection plating tin-plated
Rated voltage 160 V
Rated current 8 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
