1848423 | Phoenix Contact

Pin header, 18 pole, pitch 3.81 mm, angled, green, 1848423

Order No.: 63P2634
EAN: 4017918121495
MPN:
1848423
MC 1,5/18-GF-3,81
Series: COMBICON MC 1,5

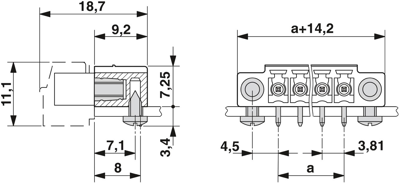

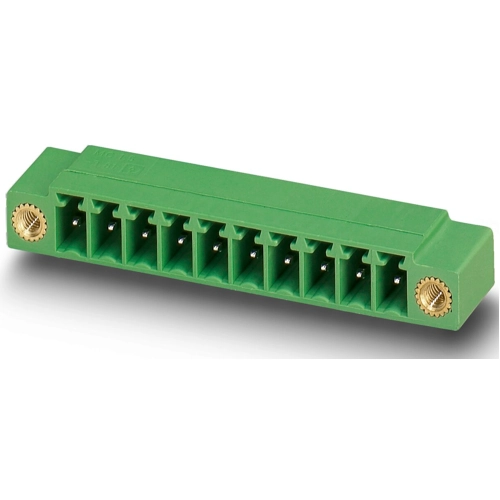

1848423 Phoenix Contact PCB Connection Systems Image 1
1848423 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
5.1765 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.1765 €

Printed-circuit board connector, 1848423, Phoenix Contact

PCB header, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 18, Number of rows: 1, Number of positions per row: 18, number of connections: 18, product range: MC 1,5/..-GF, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, plug-in system: MINI COMBICON, Locking: Screw locking, type of packaging: packed in cardboard

Features

  • Well-known mounting principle allows worldwide use
  • Screwable flange for superior mechanical stability
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
Filter Property Value
Grid 3.81 mm
contact surface tin-plated
Connection solder connection
Orientation angled
Contact type pin
Version pin header
Rated current 8 A
Colour green
Rated voltage 160 V
Additional parts equipped
Number of rows 1
Type of locking Yes
Pin number 18 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
