1847644 | Phoenix Contact

Pin header, 5 pole, pitch 5.08 mm, straight, green, 1847644

Order No.: 63P3294
EAN: 4017918113773
MPN:
1847644
MCV 1,5/ 5-GF-5,08
Series: MCV

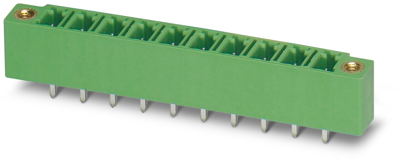

1847644 Phoenix Contact PCB Connection Systems Image 1
1847644 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.2963 € *
Available in 10 days: 86 pcs. - if ordered today
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0345 €
50 pcs.
2.7608 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Grid 5.08 mm
Version pin header
contact surface tin-plated
Colour green
Number of rows 1
Pin number 5 pole
Connection plating tin-plated
Rated voltage 320 V
Type of locking Yes
Orientation straight
Contact type pin
Connection solder connection
Rated current 8 A
Additional parts equipped
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
