1844950 | Phoenix Contact

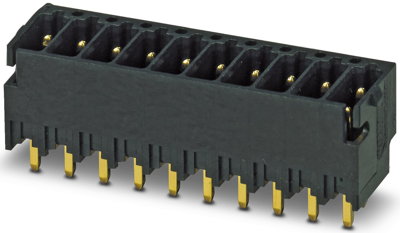

Pin header, 10 pole, pitch 2.54 mm, straight, black, 1844950
Unit Price (€ / pc.)
5.1884 € *
Available in 10 days: 330 pcs. - if ordered today
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| Type of locking | No | |
| Contact type | pin | |
| Colour | black | |
| Number of rows | 2 | |
| Additional parts | equipped | |
| Connection | solder connection | |
| Orientation | straight | |
| Grid | 2.54 mm | |
| Rated voltage | 160 V | |
| Pin number | 10 pole | |
| Version | pin header | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
