1843172 | Phoenix Contact

Pin header, 12 pole, pitch 3.81 mm, angled, green, 1843172

Order No.: 63P2783
EAN: 4017918112363
MPN:
1843172
MCD 1,5/12-G1-3,81
Series: MCD

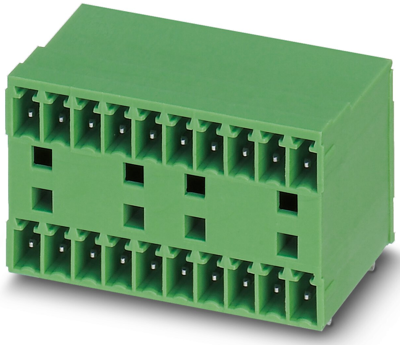

1843172 Phoenix Contact PCB Connection Systems Image 1

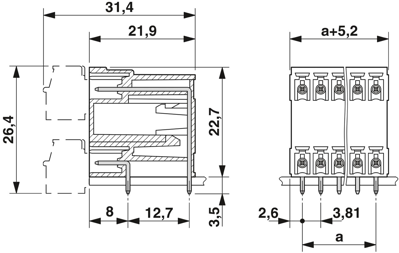

1843172 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
8.1039 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.1039 €

Printed-circuit board connector, 1843172, Phoenix Contact

PCB header, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 24, Number of rows: 2, Number of positions per row: 12, number of connections: 24, product range: MCD 1,5/..-G1, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, plug-in system: MINI COMBICON, Locking: without, type of packaging: packed in cardboard, In combination with MCV plug components, both an MCVW and an MCVR plug must be used.

Features

  • Well-known mounting principle allows worldwide use
  • Conductor connection on several levels enables higher contact density
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
Filter Property Value
Grid 3.81 mm
Connection solder connection
Version pin header
Orientation angled
Pin number 12 pole
Additional parts equipped
Contact type pin
contact surface tin-plated
Type of locking No
Number of rows 2
Colour green
Rated current 8 A
Rated voltage 160 V
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
