1842979 | Phoenix Contact

Pin header, 8 pole, pitch 3.81 mm, angled, green, 1842979

Order No.: 63P2768
EAN: 4017918112172
MPN:
1842979
MCD 1,5/ 8-G1F-3,81
Series: MCD

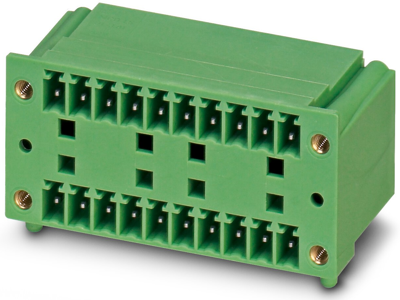

1842979 Phoenix Contact PCB Connection Systems Image 1

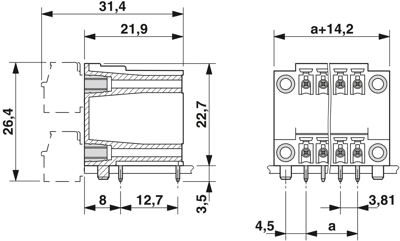

1842979 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.1162 € *
Available: 39 pcs.
Available in 10 days: 565 pcs. - if ordered today
Total Price:
7.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.1162 €

PCB Connector, 1842979, PHOENIX

Printed circuit board base strip, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 8, grid spacing: 3.81 mm, color: green, contact surface: tin, mounting: wave soldering, When combined with MCV connector parts, one MCVW and one MCVR connector must be used.

Technical specifications
Filter Property Value
Version pin header
Colour green
Type of locking Yes
Pin number 8 pole
Additional parts equipped
Connection solder pin
Rated voltage 160 V
Contact type pin
Rated current 8 A
contact surface tin-plated
Orientation angled
Grid 3.81 mm
Number of rows 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
