1840573 | Phoenix Contact

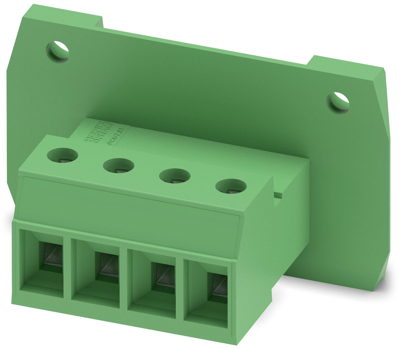

Pin header, 4 pole, pitch 7.62 mm, straight, green, 1840573
Unit Price (€ / pc.)
5.0932 € *
Available: 19 pcs.
Available in 5 Days: 3,857 pcs. - if ordered today
PCB Connector, 1840573, PHOENIX
Feed-through base strip, Rated current: 20 A, Rated voltage (III/2): 630 V, No. of poles: 4, Spacing: 7.62 mm, Type of connection: Screw connection with tension sleeve, Color: green, Contact surface: tin.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | screw connection | |
| Rated voltage | 630 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 4 pole | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
