1840366 | Phoenix Contact

Socket header, 2 pole, pitch 3.5 mm, straight, green, 1840366

Order No.: 63P1920
EAN: 4017918111564
MPN:
1840366
MC 1,5/ 2-ST-3,5
Series: COMBICON MC 1,5

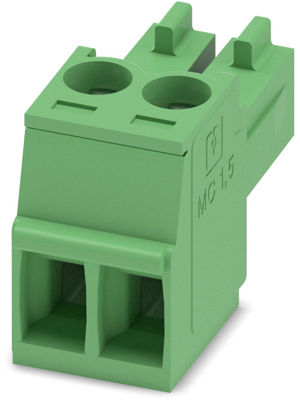

1840366 Phoenix Contact PCB Connection Systems Image 1
1840366 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available: 46 pcs.
Available in 10 days: 14,750 pcs. - if ordered today
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
25 pcs.
1.6184 €
100 pcs.
1.4994 €
250 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connector, 1840366, PHOENIX

PCB plug, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 2, grid spacing: 3.5 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Filter Property Value
Contact type socket
Orientation straight
Rated voltage 160 V
Additional parts equipped
Version socket header
Rated current 8 A
Grid 3.5 mm
Type of locking No
Colour green
Connection screw connection
contact surface tin-plated
Number of rows 1
Pin number 2 pole
Connection plating tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
