1836396 | Phoenix Contact

Pin header, 12 pole, pitch 5.08 mm, straight, green, 1836396

Order No.: 63P3470
EAN: 4017918111250
MPN:
1836396
MCV 1,5/12-G-5,08
Series: MCV

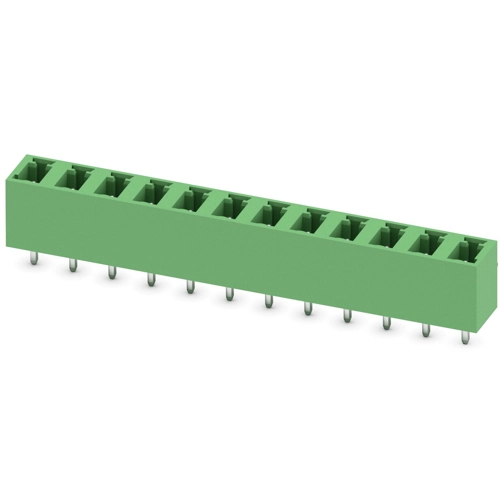

1836396 Phoenix Contact PCB Connection Systems Image 1
1836396 Phoenix Contact PCB Connection Systems Image 2
1836396 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Available: 38 pcs.
Available in 10 days: 46 pcs. - if ordered today
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.8913 €
50 pcs.
3.5343 €
100 pcs.
3.1773 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connector, 1836396, PHOENIX

Printed circuit board base strip, rated current: 8 A, rated voltage (III/2): 320 V, number of poles: 12, grid spacing: 5.08 mm, color: green, contact surface: tin, mounting: wave soldering.

Technical specifications
Filter Property Value
Contact type pin
Pin number 12 pole
Grid 5.08 mm
Colour green
Version pin header
Connection solder pin
Connection plating tin-plated
Rated voltage 320 V
Rated current 8 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking No
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
