1828948 | Phoenix Contact

Socket header, 5 pole, pitch 7.62 mm, straight, green, 1828948

Order No.: 63P0315
EAN: 4017918050832
MPN:
1828948
GICV 2,5/ 5-G-7,62
Series: GICV

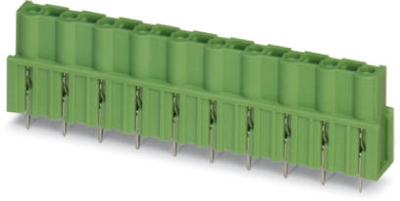

1828948 Phoenix Contact PCB Connection Systems Image 1

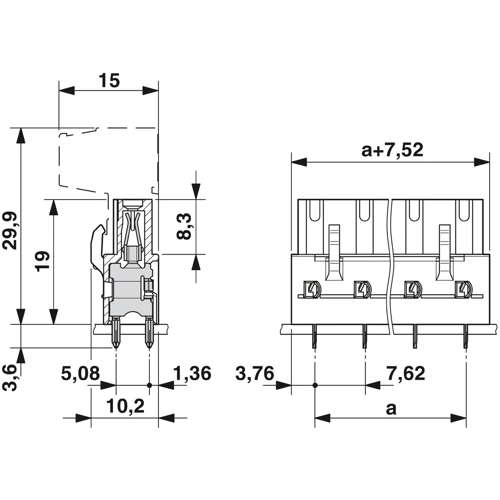

1828948 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.8913 € *
Available in 10 days: 743 pcs. - if ordered today
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8913 €
10 pcs.
3.5819 €
50 pcs.
3.2606 €
100 pcs.
2.9274 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Number of rows 1
Rated current 12 A
Contact type socket
Connection plating tin-plated
Grid 7.62 mm
Pin number 5 pole
Orientation straight
Rated voltage 630 V
Additional parts equipped
Type of locking No
Connection solder connection
contact surface tin-plated
Colour green
Version socket header
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
