1828265 | Phoenix Contact

Socket header, 4 pole, pitch 7.62 mm, straight, green, 1828265

Order No.: 63P7363
EAN: 4017918050498
MPN:
1828265
PC 4/ 4-STF-7,62
Series: PC

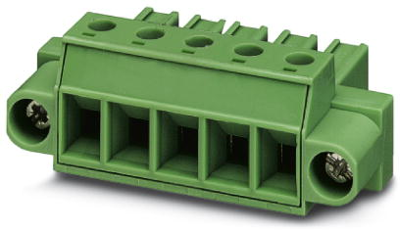

1828265 Phoenix Contact PCB Connection Systems Image 1
1828265 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
6.9139 € *
Available: 17 pcs.
Available in 10 days: 4,220 pcs. - if ordered today
Total Price:
6.91 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9139 €
10 pcs.
6.3665 €
50 pcs.
5.7953 €
100 pcs.
5.2122 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connector, 1828265, PHOENIX

PCB plug, rated current: 41 A, rated voltage (III/2): 1000 V, number of poles: 5, grid spacing: 10.16 mm, connection type: screw connection with tension sleeve, color: green, contact surface: silver.

Technical specifications
Filter Property Value
Contact type socket
Pin number 4 pole
Grid 7.62 mm
Colour green
Version socket header
Connection screw connection
Connection plating tin-plated
Rated voltage 630 V
Rated current 20 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
