1827596 | Phoenix Contact

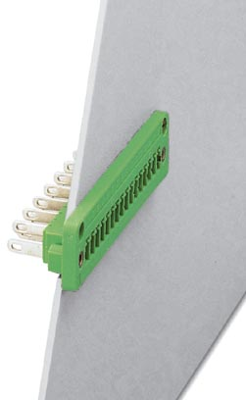

Pin header, 8 pole, pitch 3.81 mm, straight, green, 1827596
Unit Price (€ / pc.)
7.6160 € *
Available: 27 pcs.
Available in 5 Days: 1,173 pcs. - if ordered today
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6160 €
10 pcs.
7.0091 €
50 pcs.
6.3784 €
100 pcs.
5.7358 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connector, 1827596, PHOENIX
Feed-through base strip, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 8, grid dimension: 3.81 mm, connection type: solder/flat plug connection, color: green, contact surface: tin.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Pin number | 8 pole | |
| Colour | green | |
| Contact type | pin | |
| Rated current | 8 A | |
| Version | pin header | |
| Connection | solder/plug-in connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 160 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
