1825720 | Phoenix Contact

Pin header, 8 pole, pitch 3.81 mm, straight, black, 1825720

Order No.: 63P3370
EAN: 4046356825221
MPN:
1825720
MCV 1,5/ 8-G-3,81 P20 THRR56
Series: MCV

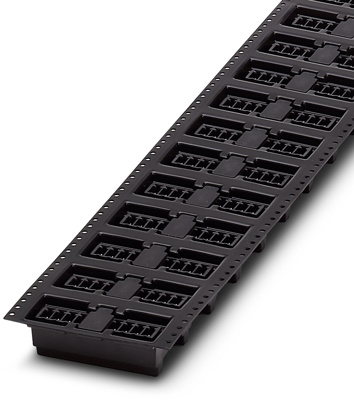

1825720 Phoenix Contact PCB Connection Systems Image 1
1825720 Phoenix Contact PCB Connection Systems Image 2
1825720 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.1301 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
426.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
2.1301 €
Technical specifications
Filter Property Value
Contact type pin
Orientation straight
Rated voltage 320 V
Additional parts equipped
Version pin header
Rated current 12 A
Grid 3.81 mm
Type of locking No
Colour black
Connection solder connection
contact surface tin-plated
Number of rows 1
Pin number 8 pole
Connection plating tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
