1825640 | Phoenix Contact
Pin header, 16 pole, pitch 5.08 mm, straight, green, 1825640
Unit Price (€ / pc.)
12.3641 € *
Available in 5 Days: 1,050 pcs. - if ordered today
PCB Connector, 1825640, PHOENIX
PCB base housing, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 2, grid spacing: 3.81 mm, color: green, contact surface: tin, mounting: wave soldering.

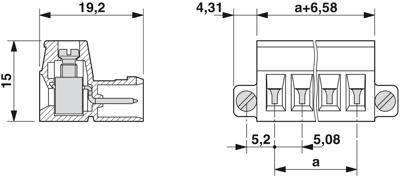

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 16 pole | |
| Grid | 5.08 mm | |
| Connection | screw connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
