1803714 | Phoenix Contact

Socket header, 16 pole, pitch 3.81 mm, green, 1803714

Order No.: 63P2604
EAN: 4017918046026
MPN:
1803714
MC 1,5/16-ST-3,81
Series: COMBICON MC 1,5

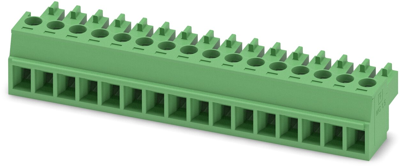

1803714 Phoenix Contact PCB Connection Systems Image 1
1803714 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
9.4962 € *
Available: 47 pcs.
Available in 5 Days: 3,050 pcs. - if ordered today
Total Price:
474.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
9.4962 €

PCB board, 1803714, Phoenix Contact

Printed-circuit board connector, green, 8 A, 160 V, female, 16 contacts, screw connection with tension sleeve.

Technical specifications
Filter Property Value
Type of locking No
Connection plating tin-plated
Colour green
Version socket header
Grid 3.81 mm
Pin number 16 pole
Rated voltage 160 V
contact surface tin-plated
Additional parts equipped
Contact type socket
Number of rows 1
Connection screw connection
Rated current 8 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
