1803659 | Phoenix Contact

Socket header, 10 pole, pitch 3.81 mm, angled, green, 1803659

Order No.: 63P2435
EAN: 4017918045968
MPN:
1803659
MC 1,5/10-ST-3,81
Series: COMBICON MC 1,5

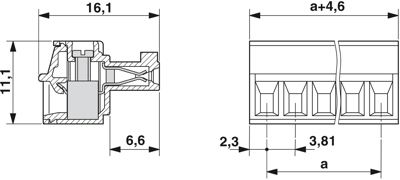

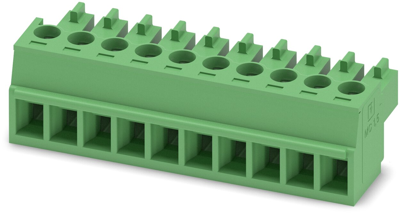

1803659 Phoenix Contact PCB Connection Systems Image 1
1803659 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
9.6390 € *
Available: 36 pcs.
Available in 10 days: 13,076 pcs. - if ordered today
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6390 €
10 pcs.
8.9726 €
50 pcs.
8.2467 €
100 pcs.
7.4970 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connector, 1803659, PHOENIX

PCB plug, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 10, grid spacing: 3.81 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Filter Property Value
contact surface tin-plated
Version socket header
Grid 3.81 mm
Contact type socket
Connection screw connection
Colour green
Connection plating tin-plated
Type of locking No
Rated voltage 160 V
Additional parts equipped
Number of rows 1
Pin number 10 pole
Orientation angled
Rated current 8 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
