1803468 | Phoenix Contact

Pin header, 6 pole, pitch 3.81 mm, straight, green, 1803468

Order No.: 63P3305
EAN: 4017918045777
MPN:
1803468
MCV 1,5/ 6-G-3,81
Series: MCV

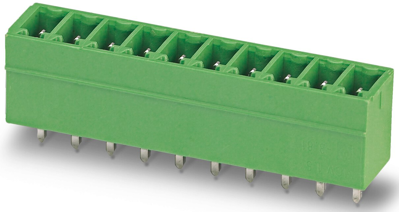

1803468 Phoenix Contact PCB Connection Systems Image 1
1803468 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available: 83 pcs.
Available in 10 days: 45,529 pcs. - if ordered today
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
25 pcs.
1.7136 €
100 pcs.
1.5827 €
250 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connector, 1803468, PHOENIX

PCB plug, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 4, grid spacing: 3.81 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Filter Property Value
Rated voltage 160 V
Connection plating tin-plated
Type of locking No
Connection solder connection
Pin number 6 pole
contact surface tin-plated
Number of rows 1
Additional parts equipped
Version pin header
Orientation straight
Grid 3.81 mm
Rated current 8 A
Contact type pin
Colour green
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
