1792320 | Phoenix Contact

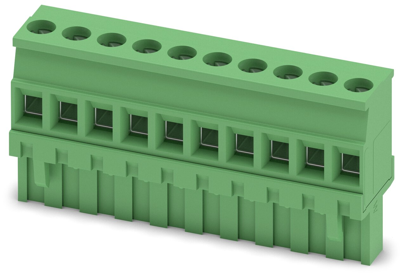

Socket header, 10 pole, pitch 5.08 mm, straight, green, 1792320

Order No.: 63P7017
EAN: 4017918044800
MPN:
1792320
MVSTBR 2,5/10-ST-5,08
Series: MVSTBR
1792320 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
6.4022 € *
Available in 10 days: 7,719 pcs. - if ordered today
Total Price:
6.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4022 €

PCB connector, 1792320, Phoenix Contact

PCB plug, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 10, grid spacing: 5.08 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin

Technical specifications
Filter Property Value
Contact type socket
Orientation straight
Rated voltage 320 V
Additional parts equipped
Version socket header
Rated current 12 A
Grid 5.08 mm
Type of locking No
Colour green
Connection screw connection
contact surface tin-plated
Number of rows 1
Pin number 10 pole
Connection plating tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
