1792281 | Phoenix Contact

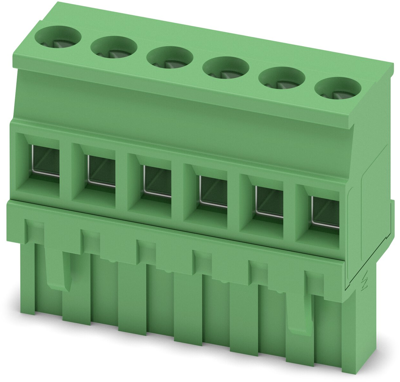

Socket header, 6 pole, pitch 5.08 mm, straight, green, 1792281

Order No.: 63P6988
EAN: 4017918044763
MPN:
1792281
MVSTBR 2,5/ 6-ST-5,08
Series: MVSTBR
1792281 Phoenix Contact PCB Connection Systems Image 1
1792281 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.9984 € *
Available in 10 days: 10,290 pcs. - if ordered today
Total Price:
4.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.9984 €

PCB Connector, 1792281, PHOENIX

PCB plug, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 6, grid dimension: 5.08 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Filter Property Value
contact surface tin-plated
Version socket header
Grid 5.08 mm
Contact type socket
Connection screw connection
Colour green
Connection plating tin-plated
Type of locking No
Rated voltage 320 V
Additional parts equipped
Number of rows 1
Pin number 6 pole
Orientation straight
Rated current 12 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
