1792252 | Phoenix Contact

Socket header, 3 pole, pitch 5.08 mm, straight, green, 1792252

Order No.: 63P6945
EAN: 4017918044732
MPN:
1792252
MVSTBR 2,5/ 3-ST-5,08
Series: MVSTBR

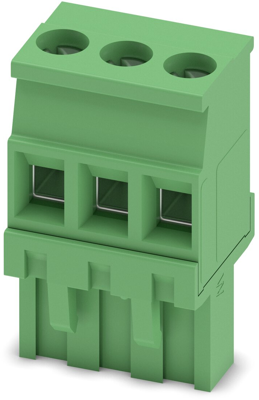

1792252 Phoenix Contact PCB Connection Systems Image 1

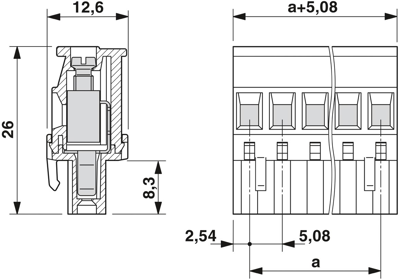

1792252 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.7013 € *
Available: 45 pcs.
Available in 10 days: 7,035 pcs. - if ordered today
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
10 pcs.
2.4871 €
50 pcs.
2.2610 €
100 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connector, 1792252, PHOENIX

PCB plug, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 3, grid dimension: 5.08 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Filter Property Value
Version socket header
Colour green
Type of locking No
Pin number 3 pole
Additional parts equipped
Connection screw connection
Connection plating tin-plated
Rated voltage 320 V
Contact type socket
Rated current 12 A
contact surface tin-plated
Orientation straight
Grid 5.08 mm
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
