1790124 | Phoenix Contact

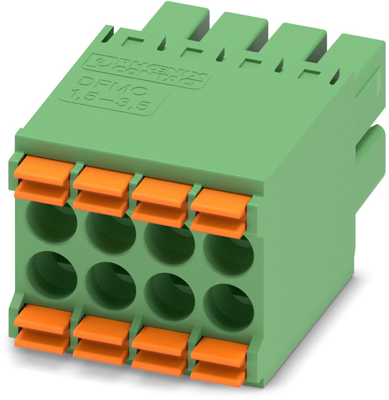

Socket header, 4 pole, pitch 3.5 mm, straight, green, 1790124
Unit Price (€ / pc.)
5.8786 € *
Available: 41 pcs.
Available in 10 days: 1,569 pcs. - if ordered today
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.4026 €
50 pcs.
4.9266 €
100 pcs.
4.4268 €
*incl. VAT plus shipping costs
Subject to prior sale

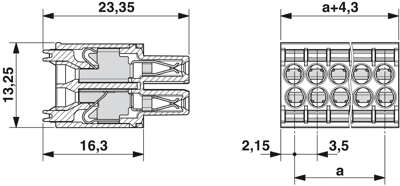

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Rated voltage | 160 V | |
| Pin number | 4 pole | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Number of rows | 2 | |
| Connection | push-in spring connection | |
| Colour | green | |
| Grid | 3.5 mm | |
| Rated current | 8 A | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Version | socket header | |
| Type of locking | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
