1786433 | Phoenix Contact

Socket header, 5 pole, pitch 5.08 mm, angled, green, 1786433

Order No.: 63P0951
EAN: 4017918042585
MPN:
1786433
IC 2,5/ 5-G-5,08
Series: IC 2,5

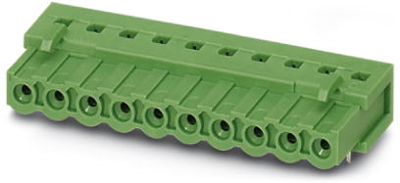

1786433 Phoenix Contact PCB Connection Systems Image 1

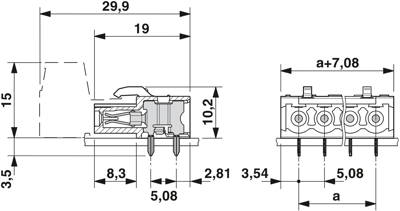

1786433 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.5343 € *
Available in 10 days: 84 pcs. - if ordered today
Total Price:
3.53 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5343 €
10 pcs.
3.2606 €
50 pcs.
2.9631 €
100 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connector, 1786433, PHOENIX

Printed circuit board base strip, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 5, grid spacing: 5.08 mm, color: green, contact surface: tin, mounting: wave soldering.

Technical specifications
Filter Property Value
Rated voltage 320 V
Connection plating tin-plated
Type of locking No
Connection solder connection
Pin number 5 pole
contact surface tin-plated
Number of rows 1
Additional parts equipped
Version socket header
Orientation angled
Grid 5.08 mm
Rated current 12 A
Contact type socket
Colour green
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
