1782271 | Phoenix Contact

Pin header, 5 pole, pitch 3.81 mm, angled, black, 1782271

Order No.: 63P2132
EAN: 4046356549837
MPN:
1782271
MC 1,5/ 5-G-3,81 P20 THR
Series: COMBICON MC 1,5

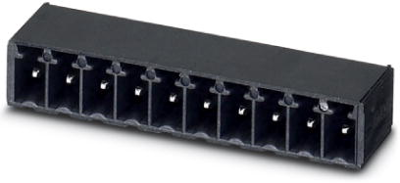

1782271 Phoenix Contact PCB Connection Systems Image 1

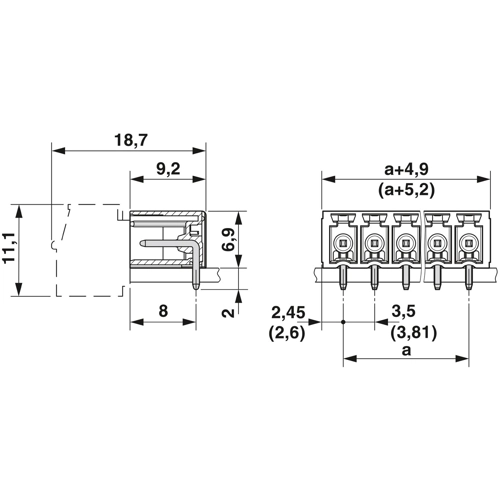

1782271 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7612 €
10 pcs.
1.6184 €
50 pcs.
1.4756 €
100 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Grid 3.81 mm
contact surface tin-plated
Connection solder connection
Orientation angled
Contact type pin
Version pin header
Rated current 8 A
Colour black
Rated voltage 160 V
Additional parts equipped
Number of rows 1
Type of locking No
Connection plating tin-plated
Pin number 5 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
