1782129 | Phoenix Contact

Pin header, 12 pole, pitch 3.81 mm, angled, black, 1782129

Order No.: 63P2517
EAN: 4046356550703
MPN:
1782129
MC 1,5/12-GF-3,81 P20 THRR72
Series: COMBICON MC 1,5

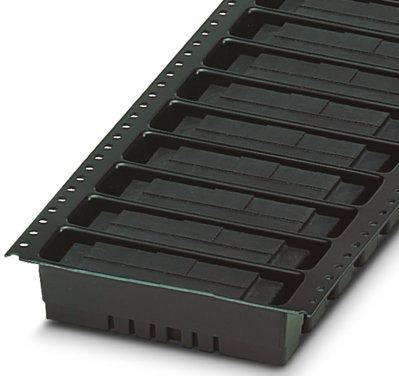

1782129 Phoenix Contact PCB Connection Systems Image 1
1782129 Phoenix Contact PCB Connection Systems Image 2
1782129 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.046 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1,537.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
380 pcs.
4.046 €
Technical specifications
Filter Property Value
Contact type pin
Orientation angled
Rated voltage 160 V
Additional parts equipped
Version pin header
Rated current 8 A
Grid 3.81 mm
Type of locking Yes
Colour black
Connection solder connection
contact surface tin-plated
Number of rows 1
Pin number 12 pole
Connection plating tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
