1782080 | Phoenix Contact

Pin header, 8 pole, pitch 3.81 mm, angled, black, 1782080

Order No.: 63P2308
EAN: 4046356550666
MPN:
1782080
MC 1,5/ 8-GF-3,81 P20 THRR56
Series: COMBICON MC 1,5
1782080 Phoenix Contact PCB Connection Systems Image 1

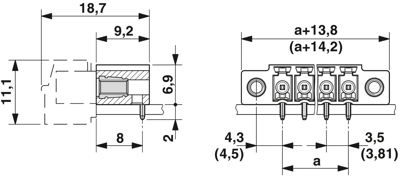

1782080 Phoenix Contact PCB Connection Systems Image 2

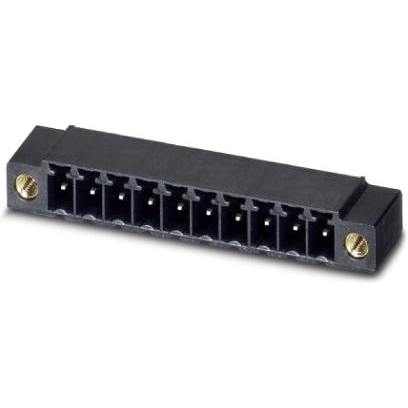

1782080 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.1773 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,493.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
470 pcs.
3.1773 €
Technical specifications
Filter Property Value
Grid 3.81 mm
Connection solder connection
Version pin header
Orientation angled
Pin number 8 pole
Additional parts equipped
Connection plating tin-plated
Contact type pin
contact surface tin-plated
Type of locking Yes
Number of rows 1
Colour black
Rated current 8 A
Rated voltage 160 V
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
