1780985 | Phoenix Contact

Pin header, 7 pole, pitch 3.5 mm, straight, black, 1780985

Order No.: 63P3330
EAN: 4046356544368
MPN:
1780985
MCV 1,5/ 7-G-3,5 P20 THRR56
Series: MCV

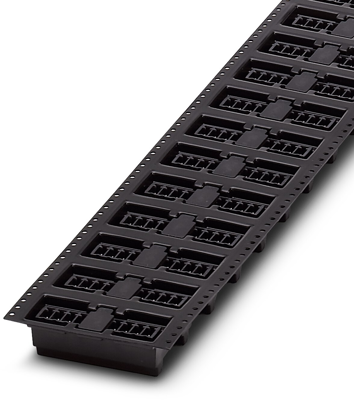

1780985 Phoenix Contact PCB Connection Systems Image 1

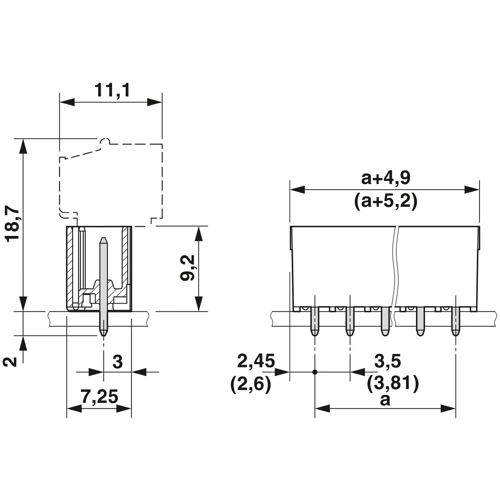

1780985 Phoenix Contact PCB Connection Systems Image 2
1780985 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.0944 € *
Available in 10 days: 800 pcs. - if ordered today
Total Price:
2.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0944 €
Technical specifications
Filter Property Value
contact surface tin-plated
Connection plating tin-plated
Grid 3.5 mm
Type of locking No
Connection solder connection
Number of rows 1
Pin number 7 pole
Orientation straight
Rated voltage 160 V
Version pin header
Rated current 8 A
Additional parts equipped
Colour black
Contact type pin
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
