1780969 | Phoenix Contact

Pin header, 6 pole, pitch 3.5 mm, straight, black, 1780969

Order No.: 63P3302
EAN: 4046356544351
MPN:
1780969
MCV 1,5/ 6-G-3,5 P20 THRR56
Series: MCV

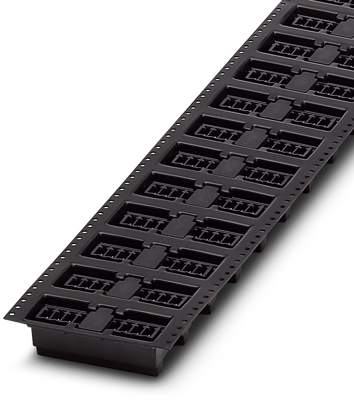

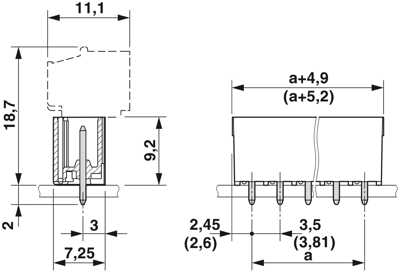

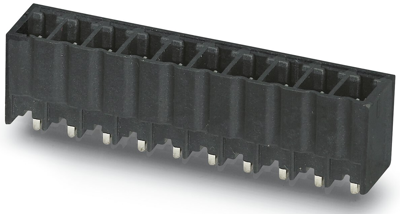

1780969 Phoenix Contact PCB Connection Systems Image 1
1780969 Phoenix Contact PCB Connection Systems Image 2
1780969 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8802 €
Technical specifications
Filter Property Value
Connection solder connection
Grid 3.5 mm
Rated voltage 160 V
Number of rows 1
Additional parts equipped
Orientation straight
Version pin header
Type of locking No
Colour black
contact surface tin-plated
Contact type pin
Pin number 6 pole
Connection plating tin-plated
Rated current 8 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
