1780406 | Phoenix Contact

Pin header, 12 pole, pitch 3.5 mm, straight, black, 1780406

Order No.: 63P3462
EAN: 4046356532174
MPN:
1780406
MCV 1,5/12-G-3,5 P14 THRR72
Series: MCV

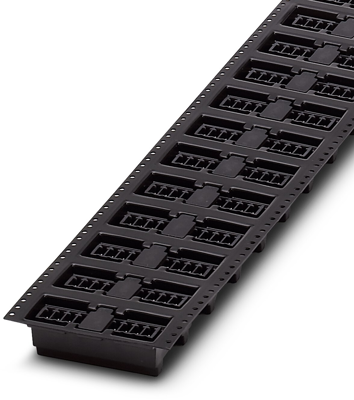

1780406 Phoenix Contact PCB Connection Systems Image 1

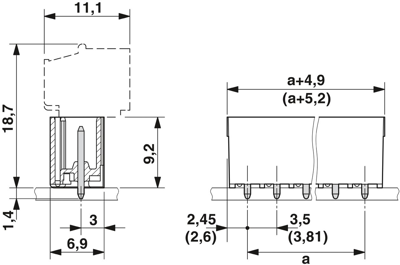

1780406 Phoenix Contact PCB Connection Systems Image 2
1780406 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.0107 € *
Available in 10 days: 3,600 pcs. - if ordered today
Total Price:
541.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
180 pcs.
3.0107 €
Technical specifications
Filter Property Value
Contact type pin
Pin number 12 pole
Grid 3.5 mm
Colour black
Version pin header
Connection solder connection
Connection plating tin-plated
Rated voltage 160 V
Rated current 8 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking No
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
