1780354 | Phoenix Contact

Pin header, 10 pole, pitch 3.5 mm, straight, black, 1780354

Order No.: 63P3417
EAN: 4046356532044
MPN:
1780354
MCV 1,5/10-G-3,5 P14 THR
Series: MCV

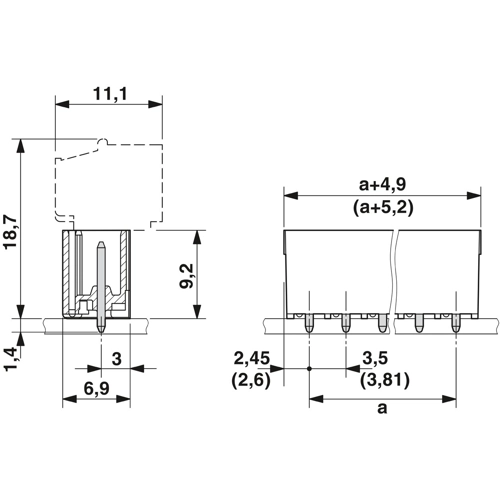

1780354 Phoenix Contact PCB Connection Systems Image 1
1780354 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.5105 € *
Available in 10 days: 2,000 pcs. - if ordered today
Total Price:
3.51 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5105 €
10 pcs.
3.2368 €
50 pcs.
2.9512 €
100 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Contact type pin
Pin number 10 pole
Grid 3.5 mm
Colour black
Version pin header
Connection solder connection
Connection plating tin-plated
Rated voltage 160 V
Rated current 8 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking No
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
