1780244 | Phoenix Contact

Pin header, 4 pole, pitch 3.5 mm, straight, black, 1780244

Order No.: 63P3247
EAN: 4046356532099
MPN:
1780244
MCV 1,5/ 4-G-3,5 P14 THRR32
Series: MCV

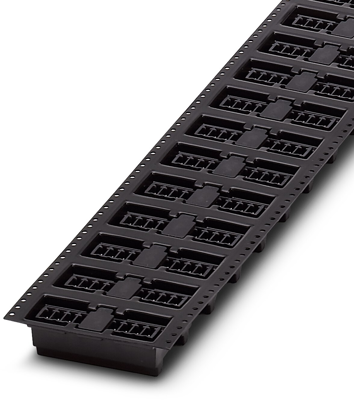

1780244 Phoenix Contact PCB Connection Systems Image 1
1780244 Phoenix Contact PCB Connection Systems Image 2
1780244 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4399 €
Technical specifications
Filter Property Value
Rated voltage 160 V
Orientation straight
Pin number 4 pole
Version pin header
Colour black
Grid 3.5 mm
Rated current 8 A
Type of locking No
Contact type pin
Number of rows 1
Connection solder connection
Connection plating tin-plated
contact surface tin-plated
Additional parts equipped
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
