1779417 | Phoenix Contact

Pin header, 4 pole, pitch 3.5 mm, straight, black, 1779417

Order No.: 63P3251
EAN: 4046356531870
MPN:
1779417
MCV 1,5/ 4-G-3,5 P26 THRR32
Series: MCV

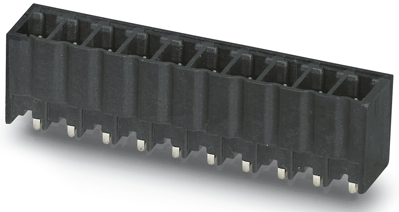

1779417 Phoenix Contact PCB Connection Systems Image 1

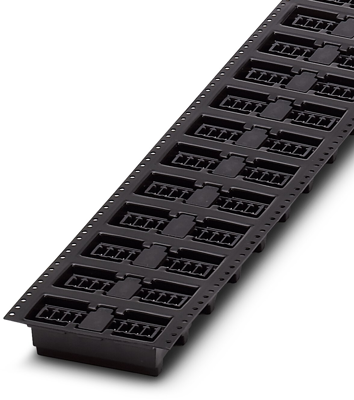

1779417 Phoenix Contact PCB Connection Systems Image 2

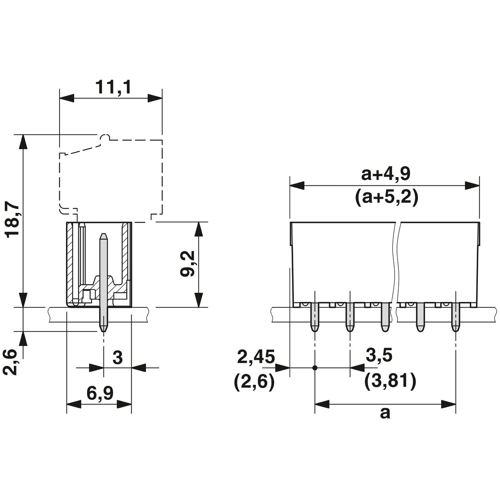

1779417 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Available in 10 days: 1,200 pcs. - if ordered today
Total Price:
1.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4399 €
Technical specifications
Filter Property Value
Number of rows 1
Grid 3.5 mm
contact surface tin-plated
Connection solder connection
Version pin header
Connection plating tin-plated
Contact type pin
Rated voltage 160 V
Additional parts equipped
Type of locking No
Orientation straight
Rated current 8 A
Colour black
Pin number 4 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
