1778845 | Phoenix Contact

Socket header, 3 pole, pitch 2.5 mm, straight, black, 1778845

Order No.: 63P8318
EAN: 4046356530057
MPN:
1778845
PTSM 0,5/ 3-P-2,5
Series: PTSM

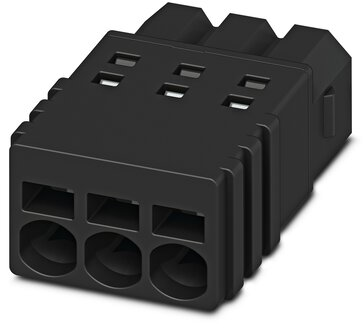

1778845 Phoenix Contact PCB Connection Systems Image 1

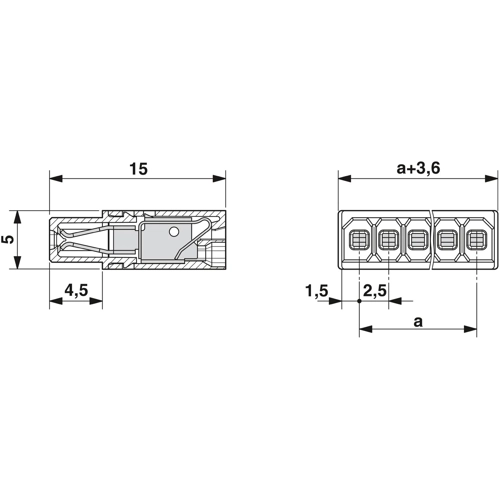

1778845 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.1301 € *
Available: 242 pcs.
Available in 10 days: 26,139 pcs. - if ordered today
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
10 pcs.
1.9516 €
50 pcs.
1.7850 €
100 pcs.
1.5946 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Colour black
Type of locking No
contact surface tin-plated
Rated current 6 A
Grid 2.5 mm
Connection plating tin-plated
Pin number 3 pole
Version socket header
Additional parts equipped
Orientation straight
Connection push-in spring connection
Contact type socket
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
