1778573 | Phoenix Contact

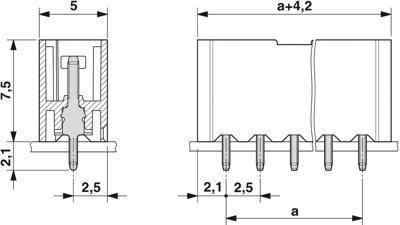

Pin header, 4 pole, pitch 2.5 mm, straight, black, 1778573
Unit Price (€ / pc.)
1.4994 € *
Available: 319 pcs.
Available in 10 days: 103,950 pcs. - if ordered today
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4994 €
10 pcs.
1.3685 €
50 pcs.
1.2495 €
100 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Connection | solder connection | |
| Rated current | 6 A | |
| Colour | black | |
| Type of locking | No | |
| Grid | 2.5 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Connection plating | tin-plated | |
| Version | pin header | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
