1766712 | Phoenix Contact

Pin header, 7 pole, pitch 7.5 mm, straight, green, 1766712

Order No.: 63P0719
EAN: 4017918032739
MPN:
1766712
GMSTBVA 2,5/ 7-G
Series: GMSTBVA
1766712 Phoenix Contact PCB Connection Systems

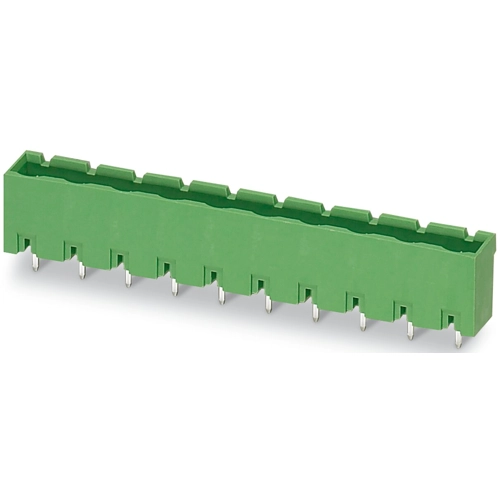

Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available in 10 days: 1,800 pcs. - if ordered today
Total Price:
1.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.9278 €

Feed-through header, 1766712, Phoenix Contact

PCB header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 7, Number of rows: 1, Number of positions per row: 7, number of connections: 7, product range: GMSTBVA 2,5/..-G, pitch: 7.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, plug-in system: CLASSIC COMBICON, Locking: without, type of packaging: packed in cardboard

Features

  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
  • Well-known mounting principle allows worldwide use
  • Larger pitch for increased voltage requirements
  • Closed contour for optimum stability of the plug-in connection
  • Vertical connection enables multi-row arrangement on the PCB
Technical specifications
Filter Property Value
Rated voltage 630 V
Orientation straight
Pin number 7 pole
Version pin header
Colour green
Grid 7.5 mm
Rated current 12 A
Type of locking No
Contact type pin
Number of rows 1
Connection solder connection
Connection plating tin-plated
contact surface tin-plated
Additional parts equipped
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
