1757268 | Phoenix Contact

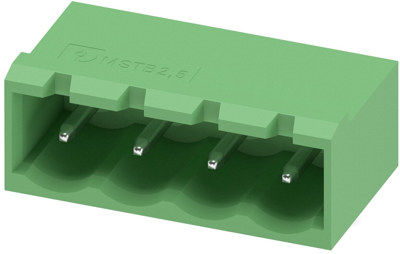

Pin header, 4 pole, pitch 5.08 mm, angled, green, 1757268
Unit Price (€ / pc.)
1.1662 € *
Available: 144 pcs.
Available in 10 days: 46,786 pcs. - if ordered today
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
100 pcs.
1.0353 €
250 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connector, 1757268, PHOENIX
PCB base housing, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 4, grid spacing: 5.08 mm, color: green, contact surface: tin, mounting: wave soldering.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Version | pin header | |
| Grid | 5.08 mm | |
| Contact type | pin | |
| Connection | solder connection | |
| Colour | green | |
| Connection plating | tin-plated | |
| Type of locking | No | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Pin number | 4 pole | |
| Orientation | angled | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
