1754517 | Phoenix Contact

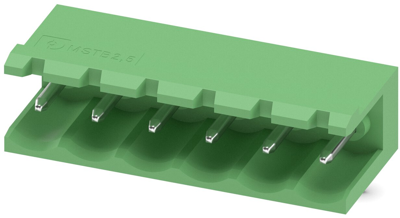

Pin header, 6 pole, pitch 5 mm, angled, green, 1754517
Unit Price (€ / pc.)
1.8802 € *
Available in 10 days: 16,200 pcs. - if ordered today
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.7374 €
50 pcs.
1.5708 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale
Printed circuit board base strip, 1754517, Phoenix Contact
Printed circuit board base housing, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 6, grid spacing: 5 mm, color: green, contact surface: tin, mounting: wave soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Pin number | 6 pole | |
| Grid | 5 mm | |
| Colour | green | |
| Version | pin header | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | angled | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Additional parts | equipped | |
| Type of locking | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
