1731785 | Phoenix Contact

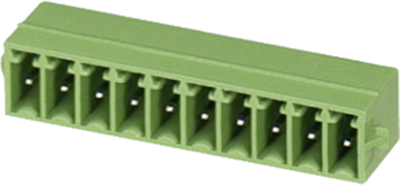

Pin header, 13 pole, pitch 3.5 mm, angled, green, 1731785
Unit Price (€ / pc.)
4.3792 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
4.38 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3792 €
10 pcs.
4.0341 €
50 pcs.
3.6771 €
100 pcs.
3.3082 €
*incl. VAT plus shipping costs
Subject to prior sale
Base housing with click-and-lock flange, type MC1,5.
Horizontal conductor insertion.

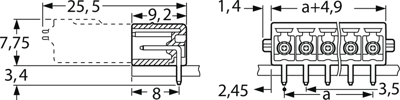

Technical attributes (type, number of poles, dimension a): MC1,5/13-G-3,5-RN, 13-pole, 42 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 13 pole | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Colour | green | |
| Rated current | 8 A | |
| Type of locking | Yes | |
| Connection | solder connection | |
| Contact type | pin | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
