1731714 | Phoenix Contact

Pin header, 6 pole, pitch 3.5 mm, angled, green, 1731714

Order No.: 51F7338
EAN: 4046356159326
MPN:
1731714
MC 1,5/6-G-3,5-RN
Series: COMBICON MC 1,5

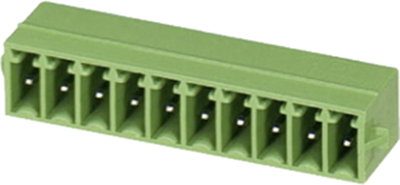

1731714 Phoenix Contact PCB Connection Systems Image 1
1731714 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.8802 €
50 pcs.
1.7136 €
100 pcs.
1.5351 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housing with click-and-lock flange, type MC1,5.

Horizontal conductor insertion.

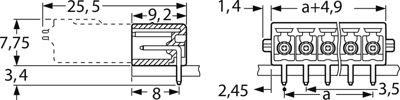

Technical attributes (type, number of poles, dimension a): MC1,5/6-G-3,5-RN, 6-pole, 17.5 mm

Technical specifications
Version pin header
Colour green
Number of rows 1
Rated current 8 A
Connection plating tin-plated
Type of locking Yes
Contact type pin
Connection solder connection
Orientation angled
Pin number 6 pole
Rated voltage 160 V
Additional parts equipped
Grid 3.5 mm
contact surface tin-plated
Logistics
Customs tariff number 85366930
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
