1717119 | Phoenix Contact

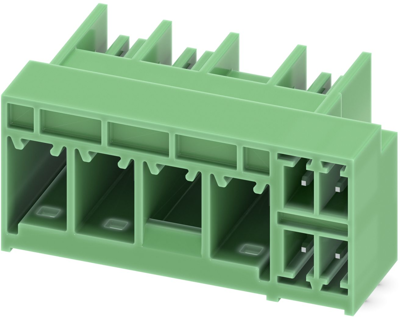

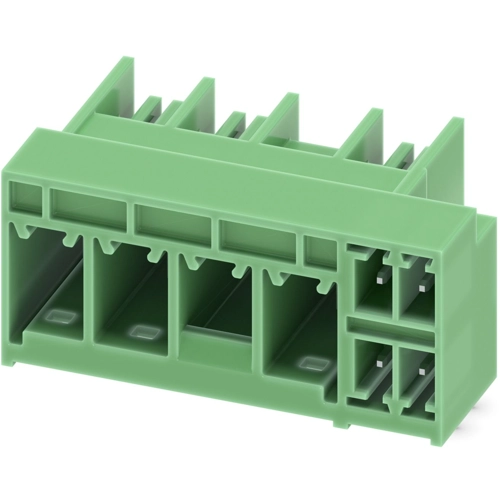

Pin header, 7 pole, pitch 7.62 mm, angled, green, 1717119
Unit Price (€ / pc.)
5.5097 € *
Available in 10 days: 50 pcs. - if ordered today
Total Price:
5.51 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5097 €
10 pcs.
5.1289 €
50 pcs.
4.7124 €
100 pcs.
4.2959 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB hybrid header, 1717119, Phoenix Contact
PCB hybrid header, nominal cross section: 6 mm2, color: green, nominal current: 41 A, 8 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: PCH 6/..+4-GL, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, plug-in system: COMBICON PC 6 hybrid, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting method: Latching flange.
Features
- Combining signals and power in a single header saves time and space
- Intuitive locking mechanism prevents accidental disconnection
- Easy PCB replacement thanks to plug-in modules
- Well-known mounting principle allows worldwide use
Technical specifications
| Rated voltage | 630 V | |
| Number of rows | 1 | |
| Contact type | pin | |
| Connection | solder connection | |
| Type of locking | Yes | |
| Grid | 7.62 mm | |
| contact surface | tin-plated | |
| Pin number | 7 pole | |
| Colour | green | |
| Rated current | 41 A | |
| Version | pin header | |
| Orientation | angled | |
| Connection plating | tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
