1717043 | Phoenix Contact

Pin header, 6 pole, pitch 7.62 mm, angled, green, 1717043

Order No.: 64P2275
EAN: 4055626535760
MPN:
1717043
PC 6/ 6-GL4-7,62
Series: PC
1717043 Phoenix Contact PCB Connection Systems

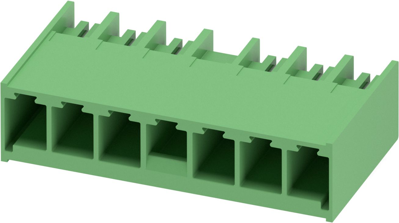

Image may differ
Unit Price (€ / pc.)
6.5569 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.5569 €

PCB header, 1717043, Phoenix Contact

PCB header, nominal cross section: 6 mm², color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Tin, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: PC 6/..-GL4, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 6, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Self-locking flange.

Features

  • Increased touch protection in the pin connector pattern for maximum safety even when not plugged in
  • Easy PCB replacement thanks to plug-in modules
  • Designed for integration into the SMT soldering process
  • Intuitive locking mechanism prevents accidental disconnection
Technical specifications
Colour green
Type of locking snap-in locking
contact surface tin-plated
Rated current 41 A
Grid 7.62 mm
Pin number 6 pole
Version pin header
Orientation angled
Connection solder connection
Contact type pin
Rated voltage 630 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
